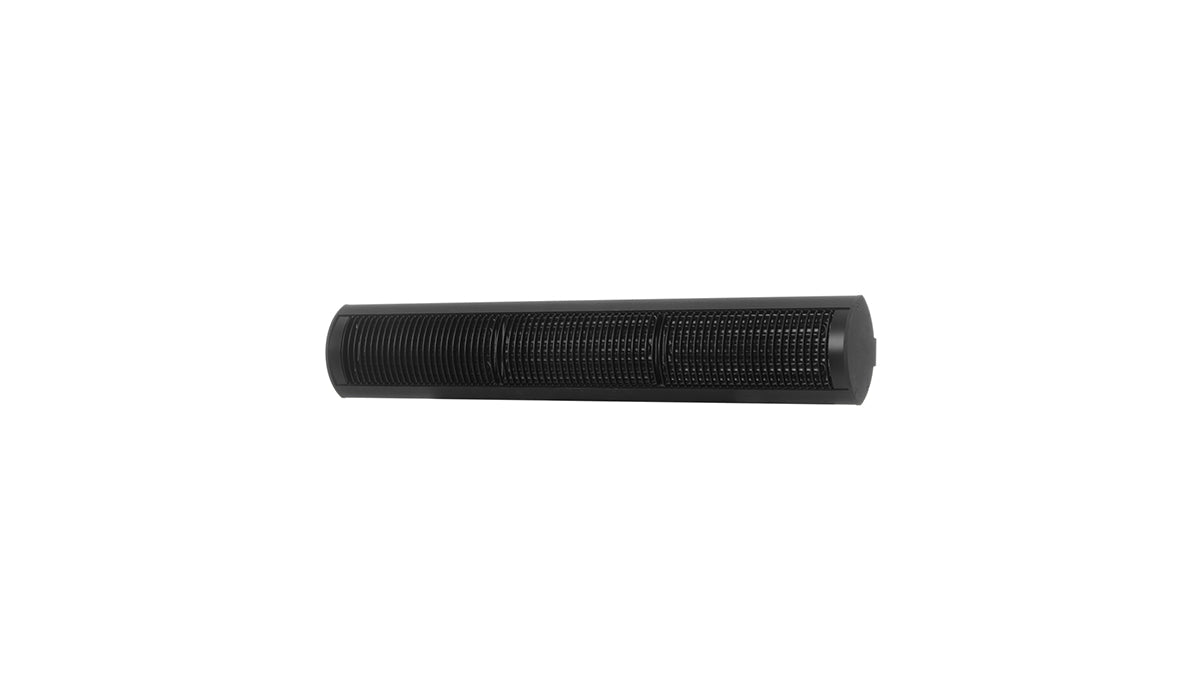

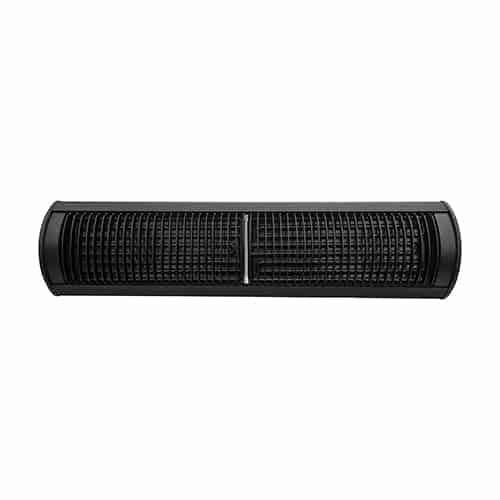

Aspect XL 1300W / 1950W

Key Features:

• Zero light designer heater
• High power black ceramic elements
• Black powder-coated aluminium
• Manufactured in Europe
• Indoors & rooms that open outdoors
• Wall mount only

  Description

  The Aspect XL is an energy-efficient, space heating solution for indoor space heating and rooms that open to the outdoors.  It is particularly suited for those applications where an aesthetically pleasing comfort heating solution with zero light is preferred. Office reception areas, shops, hotels, churches, restaurants, public halls, covered patios or terraces and anywhere within the public eye.

  Utilising specially developed ceramic emitters in a high quality extruded and anodised aluminium body. The groundbreaking design of the Aspect XL, including triple reflectors, projects far infrared heat forwards. The result is greater efficiency, a wider spread and throw and increased comfort levels. Zero light and featuring a sleek, discreet black body and grill, the Aspect XL performs as good as it looks. Other features include:

  • Silent operation, without fumes – consequently raising no health and safety issues;
  • Cheaper installation than oil or gas alternatives – all you require is electric cable;
  • No maintenance;
  • Zoning so heat is “focused” exactly where you want it;
  • No red glow;
  • Lower consumption levels.

  Please note: In areas with air movement/wind the directional Far Infrared spread may reduce by 1/3 to ½. In these areas we recommend mounting at the lowest height and proportionally increasing the number of heaters or for colder, windier situations, choosing a heater from our new middlewave Sunset range. Your Herschel dealer can advise.

  The unit is protected against water ingress (protection level IPX4). When when used outside it must be installed in a permanently covered, well-sheltered outdoor area (always refer to installation instructions) and is best for warmer climates.

  Technical Specifications

  Key features

  • Up to 30% more efficient than quartz and halogen heaters
  • No maintenance
  • Long lifetime –solid state technology
  • Stylish looks and cutting edge design with aluminium grill as standard
  • Manufactured in Europe to very high quality and European safety standards
  • Designed to gently warm people and buildings without fierce heat and almost zero light
  • For use indoors or outdoors in covered areas with low air / wind movement
  • Warm up time < 5 mins
  • Available in 1300 & 1950 watts

  The Herschel Aspect XL must be located in a position to allow proper and efficient use but one that ensures hot parts are not touched accidentally. The recommended installation height of the Aspect XL is 2.3m to 2.5m (90”-98”) from the floor and under no circumstances is it to be installed at less than 1.8m from the floor.  In all cases it should be installed at a height where it cannot be touched in operation.  Consideration should be given to any temporary or occasional additions such as stages or platforms, and the height should be adjusted accordingly. The Herschel Aspect XL should be firmly and permanently attached to the wall using the bracket supplied, with the heaters angled down at 60 degrees from vertical.

  Element: 2 or 3 ceramic longwave Infrared emitters (3-10 microns)

  Body: High quality extruded and anodised aluminium body

  Dimensions 1300W: 550 x 95 x 138mm; 1950W: 800 x 95 x 138mm

  Voltage: 230V, 50 Hz

  Cable: 1.5m power cable

  Warm-up time: <5 minutes

  Effective waveband: 3 – 10µm

  Weight: 3.4kg (1300W); 4.4kg (1950W)

  Warranty: 5 years, excluding Ceramic Elements 12 months.

  Protection: IP Rating IPX4

  Mounting: Recommended mounting at 2.3-2.5m and must be installed under a cover or canopy extending at least 2m (when outdoors). Refer to the installation instructions.

  1300 Watts giving a 3-6m2 heated zone outdoors; 6-9m2 heated zone indoors.

  1950 Watts giving a 4.5-9m2 heated zone outdoors; 9-12m2 heated zone indoors.

  The heater will directly warm people and objects within the Heated Zone (note: air movement may reduce area coverage). Within enclosed areas the thermal mass of the building will also be heated within the entire zone.  Dependent upon the property age/type, insulation levels, number of heaters used and running times this will increase the ambient temperatures. For larger commercial projects or where different mounting heights are required we would always recommend Herschel carry out a survey or detailed desktop assessment.

  Please note: In areas with air movement/wind the directional Far Infrared spread may reduce by 1/3 to ½. In these areas we recommend mounting at the lowest height and proportionally increasing the number of heaters.
